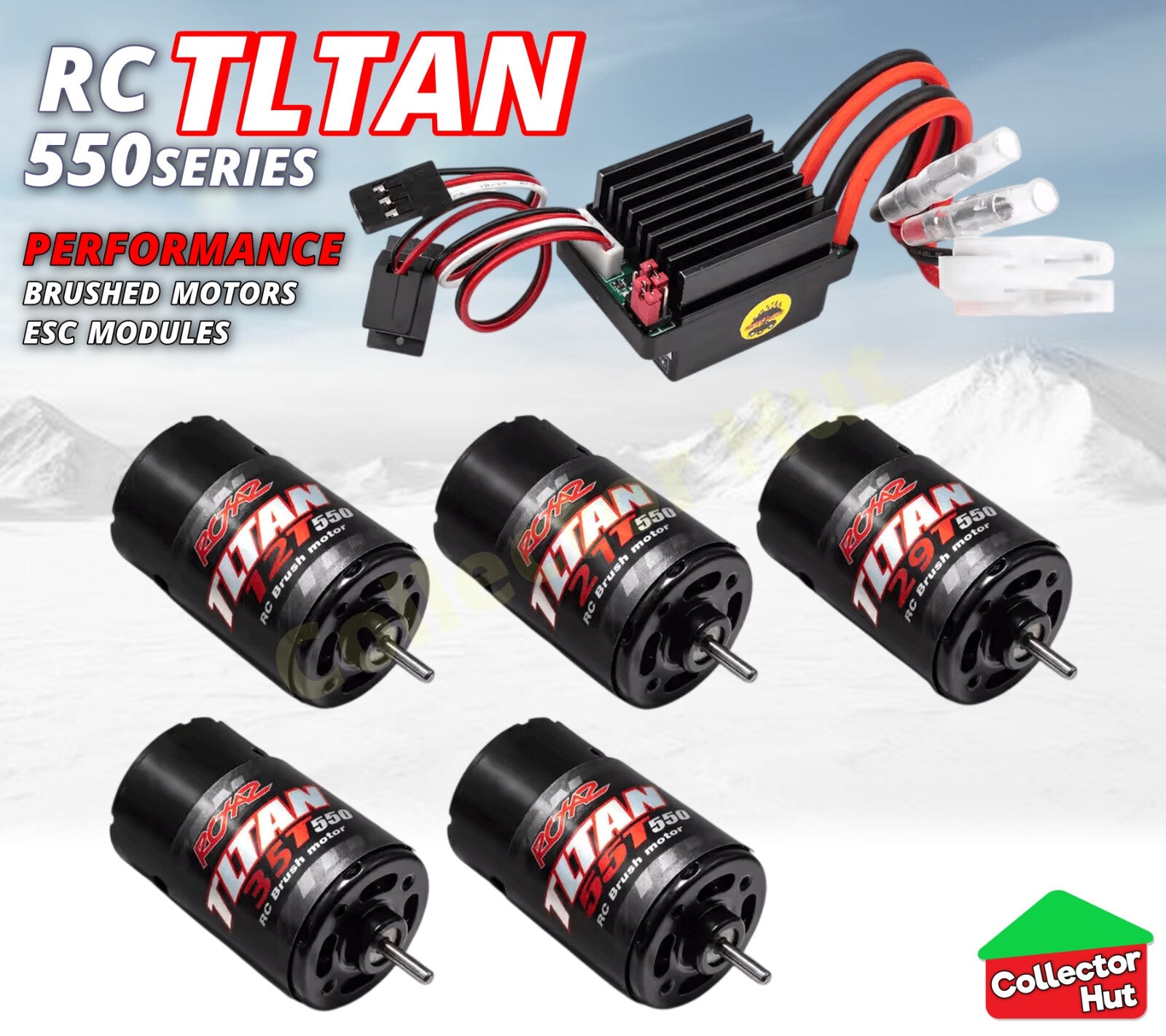

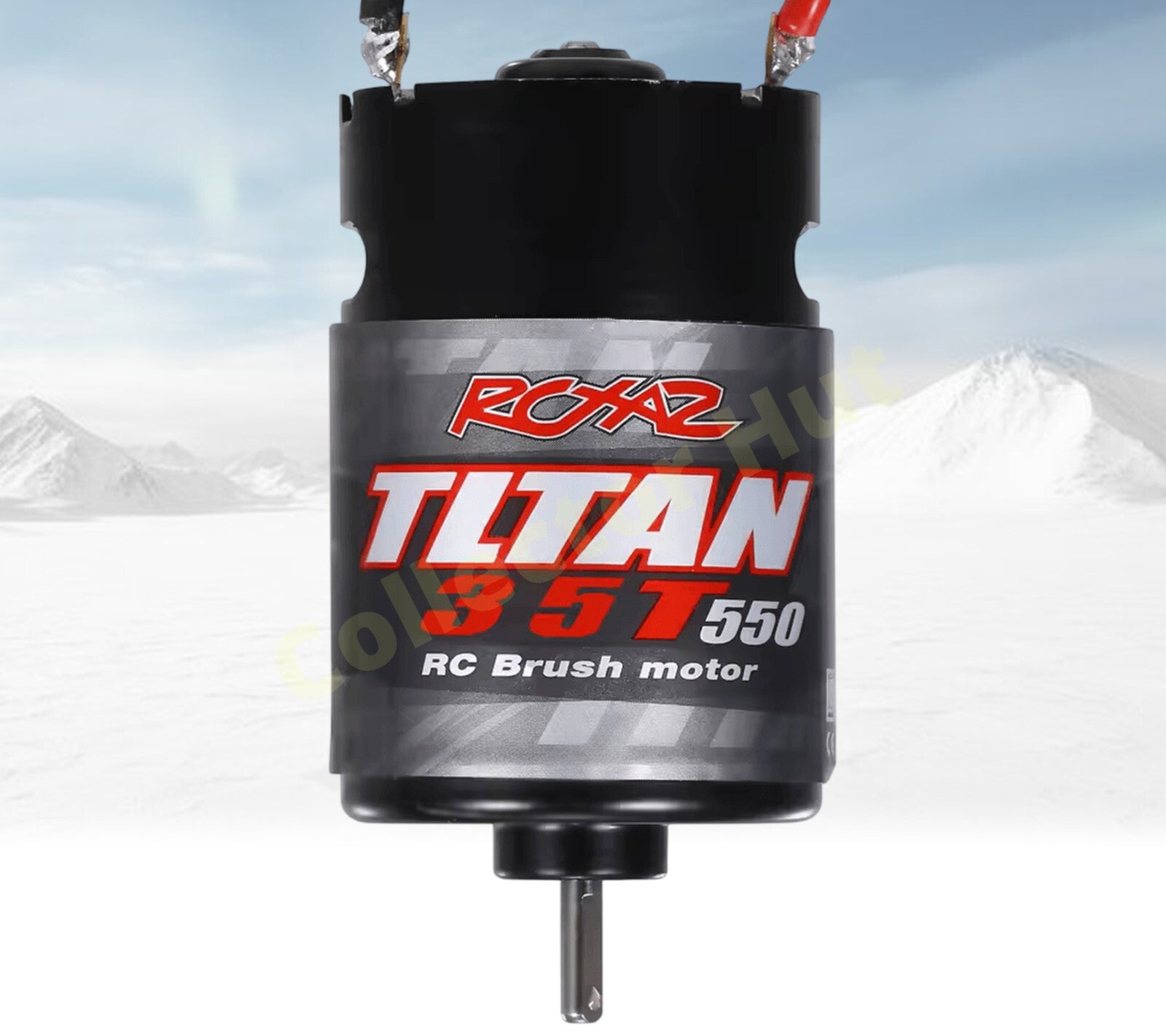

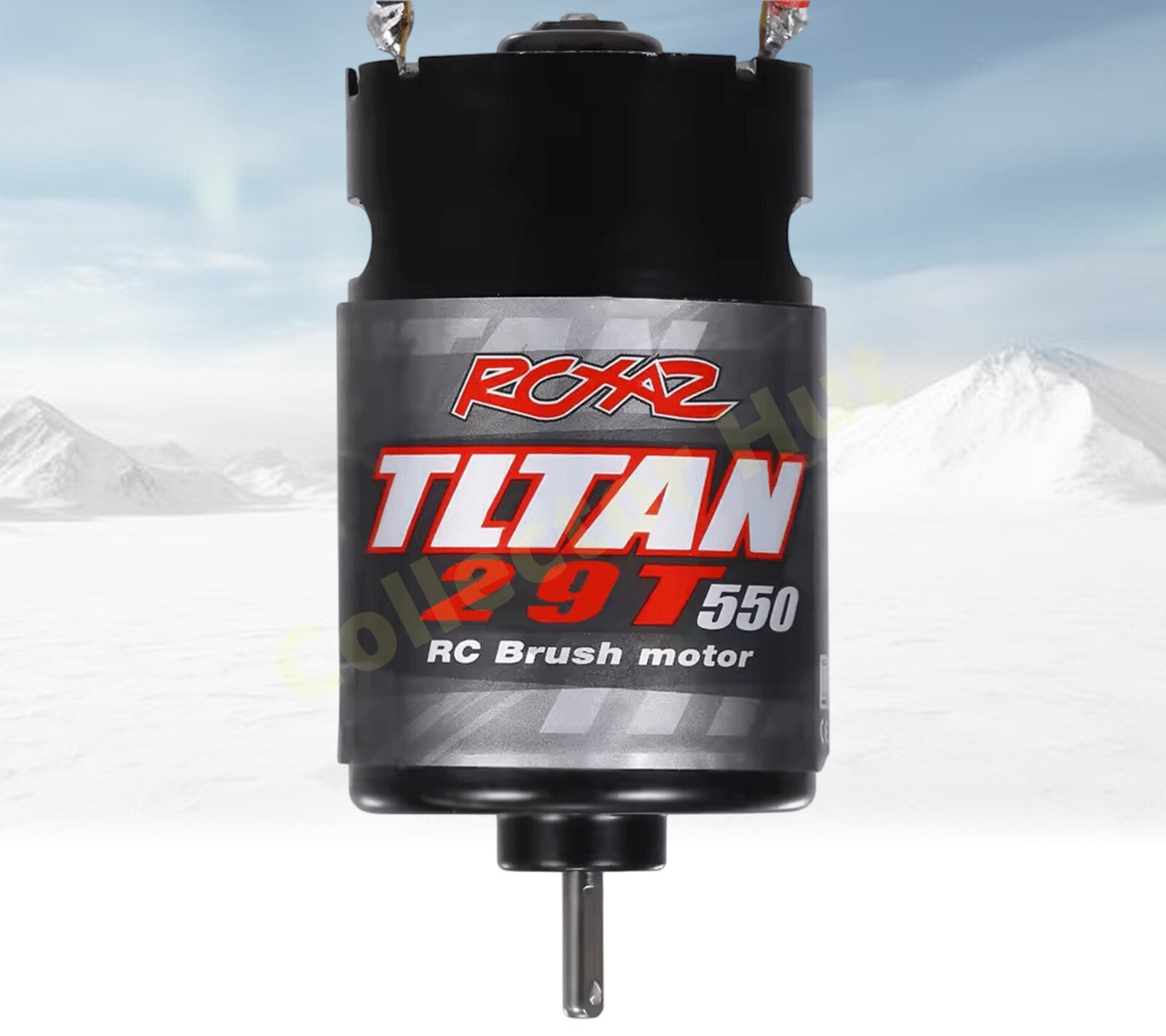

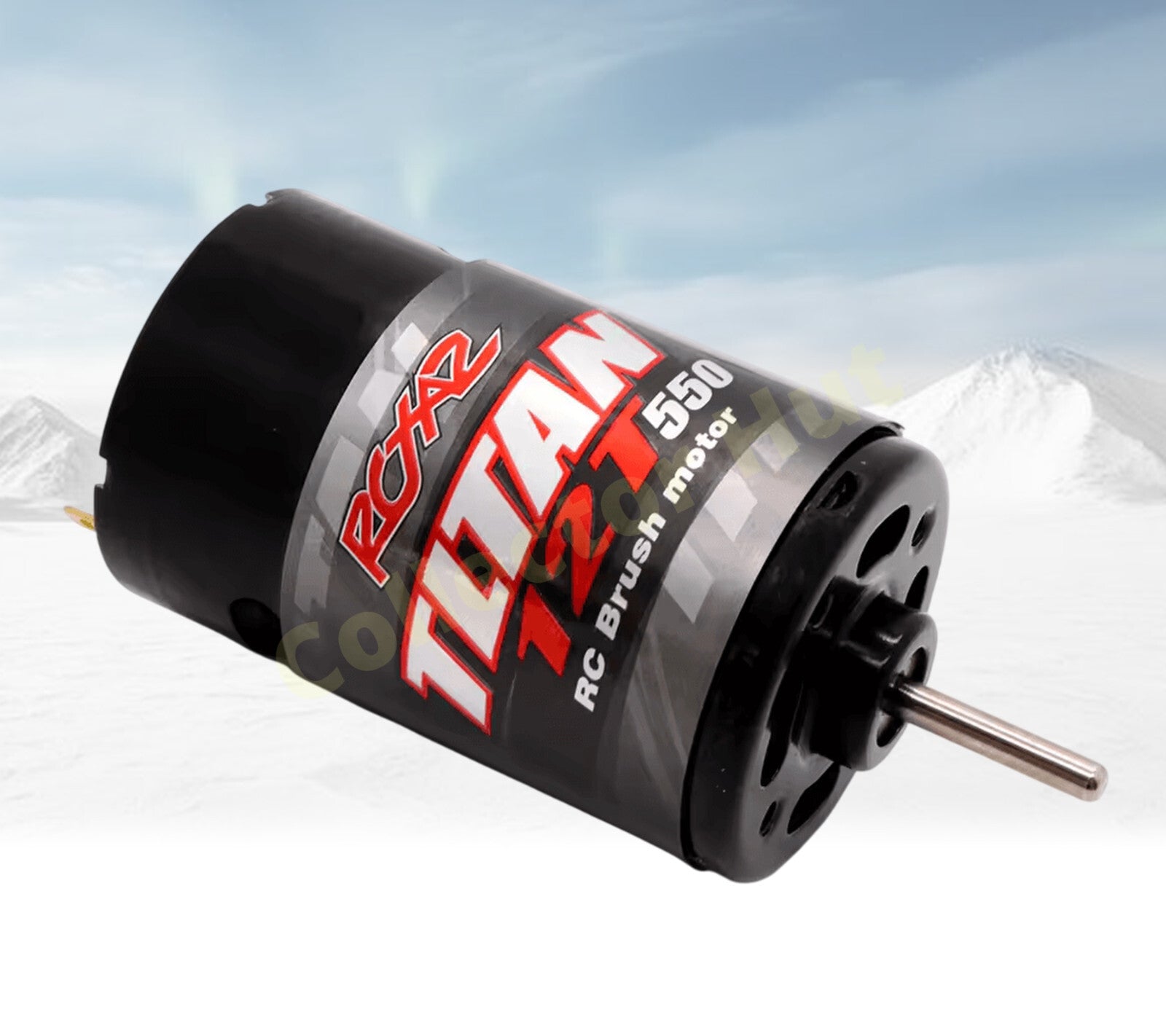

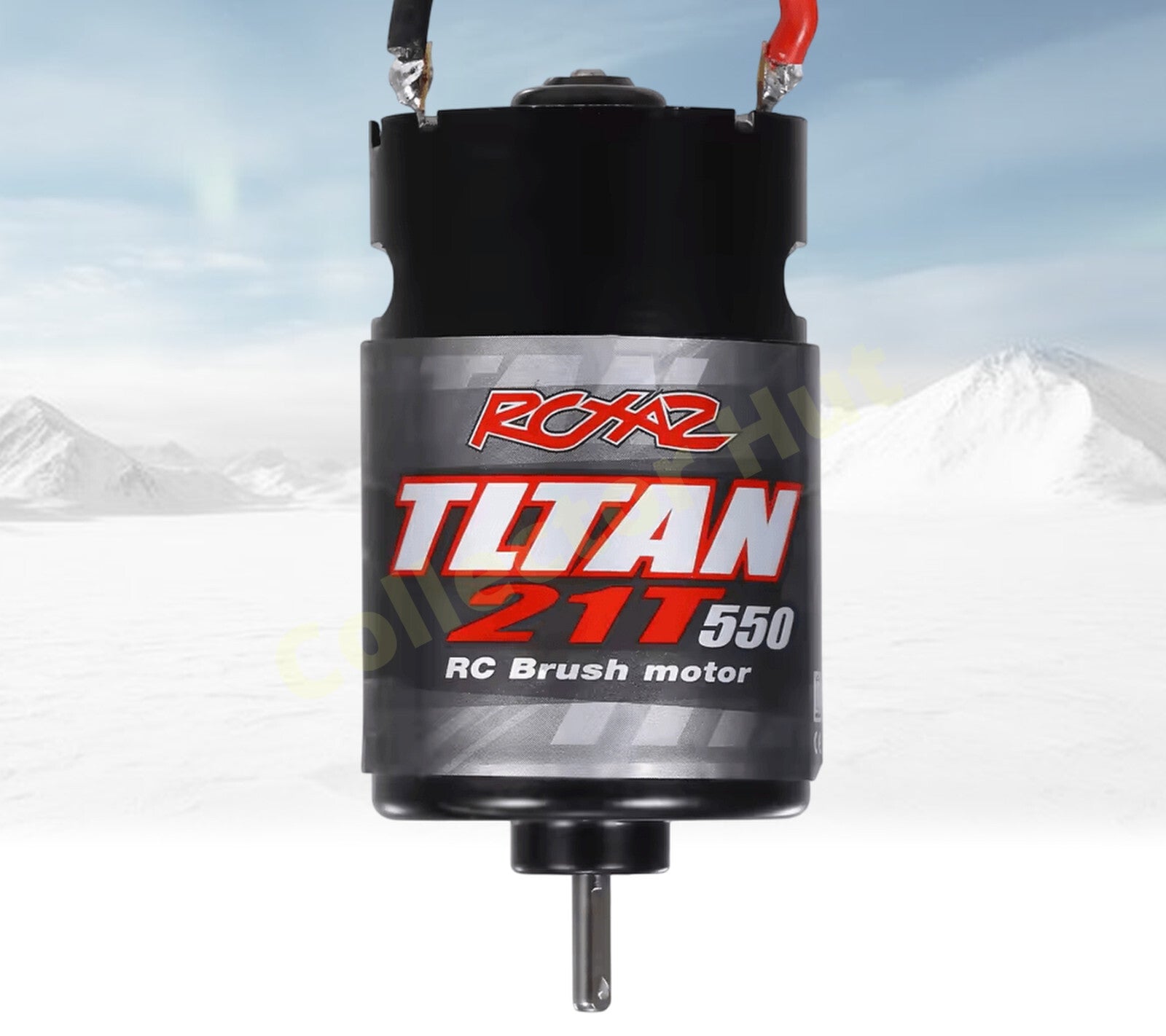

The TLTAN 550 series of reverse-rotation motors offer a premium quality product at an affordable price.
Available in various power ratings and a series of compatible ESC modules, these are great for upgrading or replacing stock modules in your unit.

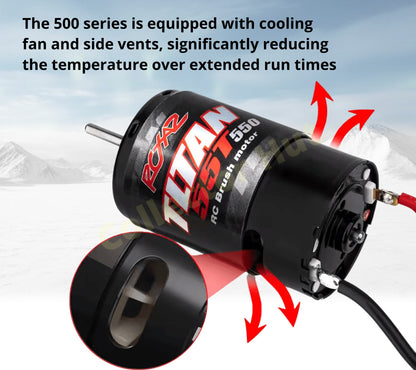

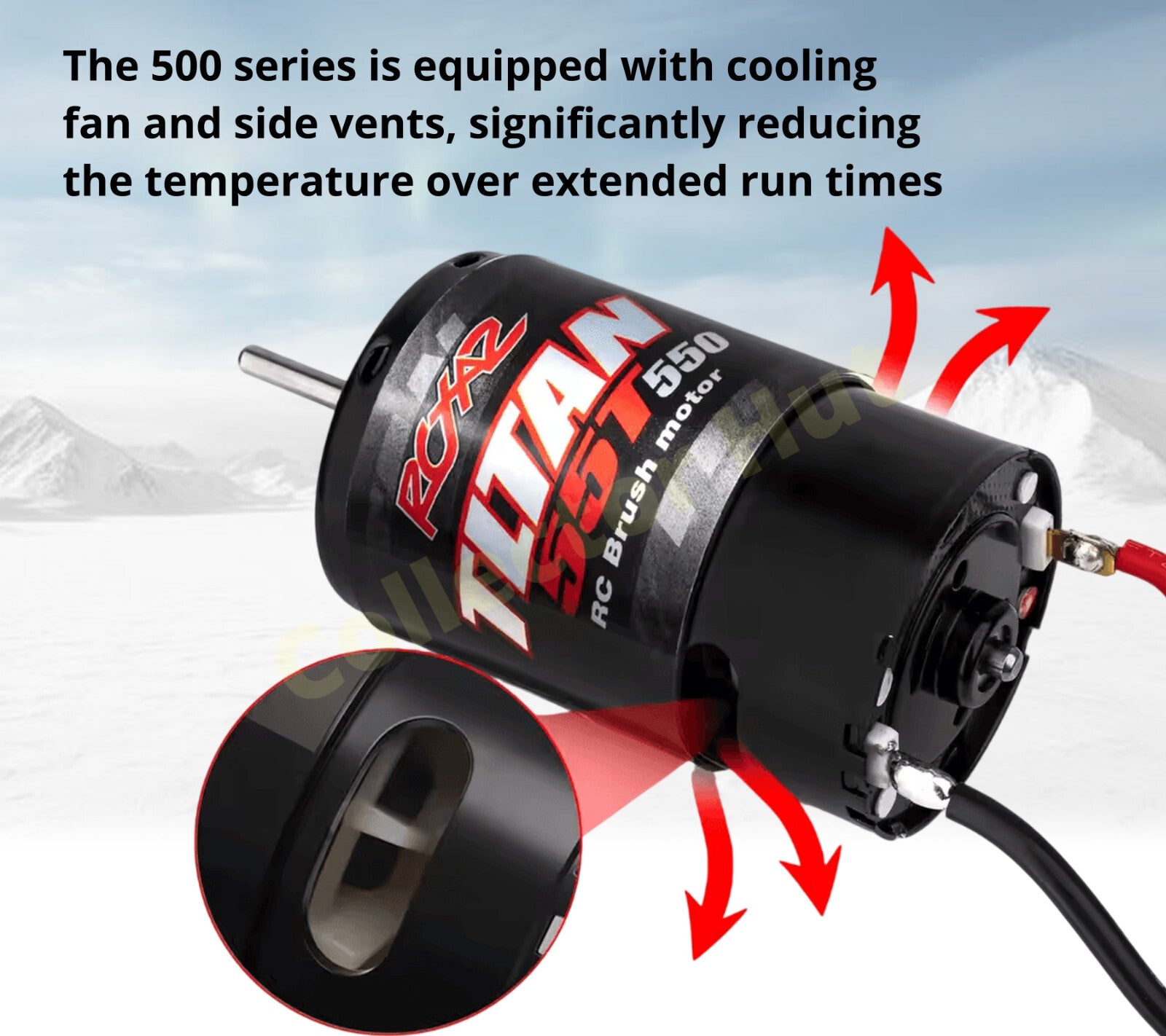

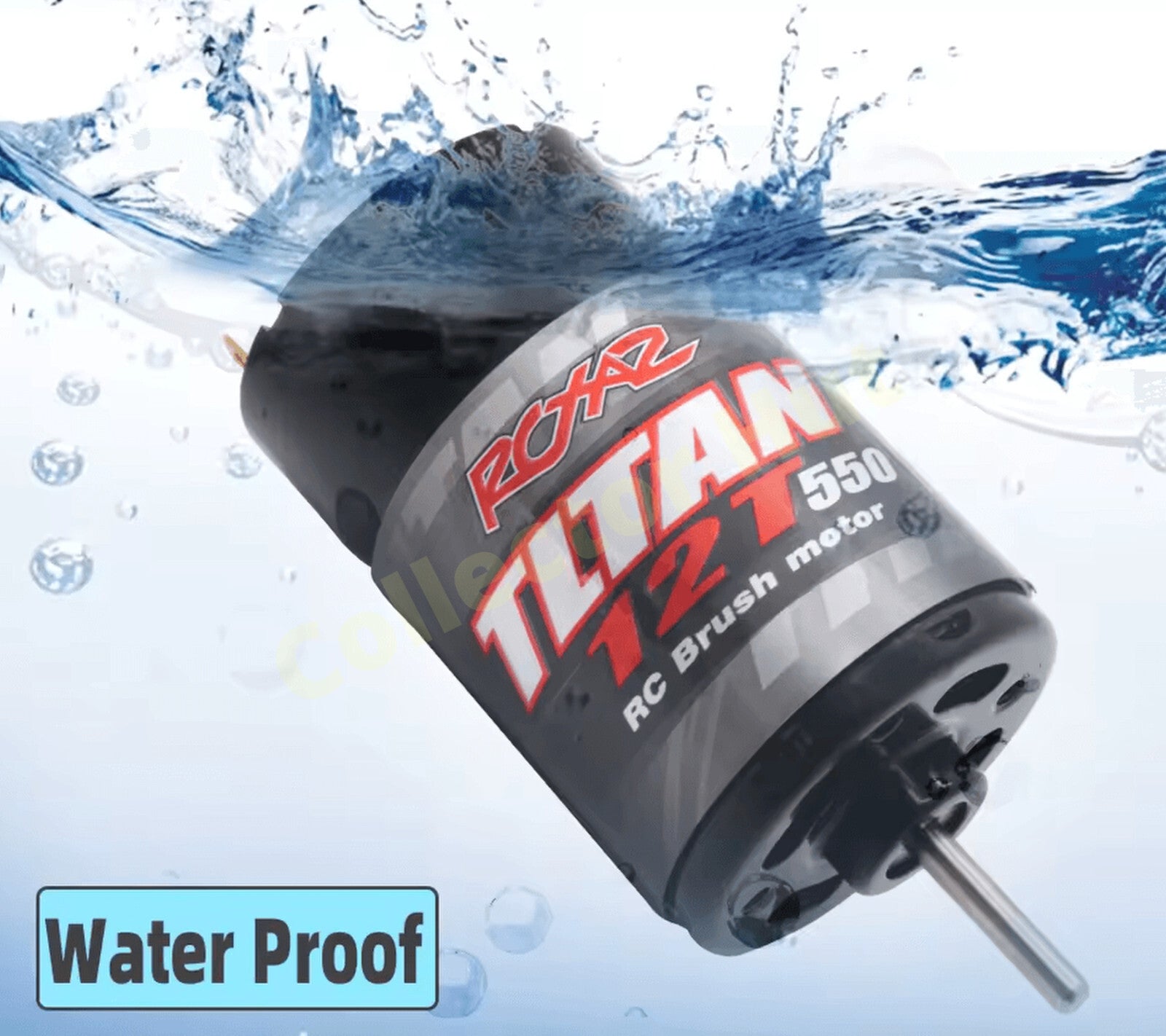

Brushed waterproof motors can handle the messy, dirty, off-road action with confidence. Designed with heat-resistance in mind, with a built-in cooling fan, allowing high speeds, long runtimes and long lifetime. Constructed with high-strength magnets and ball-bearing outputs for maximum performance and reliability under high torque.
Supplied with bullet plugs for easy installation without soldering
The T rating on motors represents the motor armature, which is the turns of wire around the rotor core. Higher rated motors provides more torque over speed, whereas a lower rating prioritises speed over torque. Select the rating based on how you want your RC to perform.

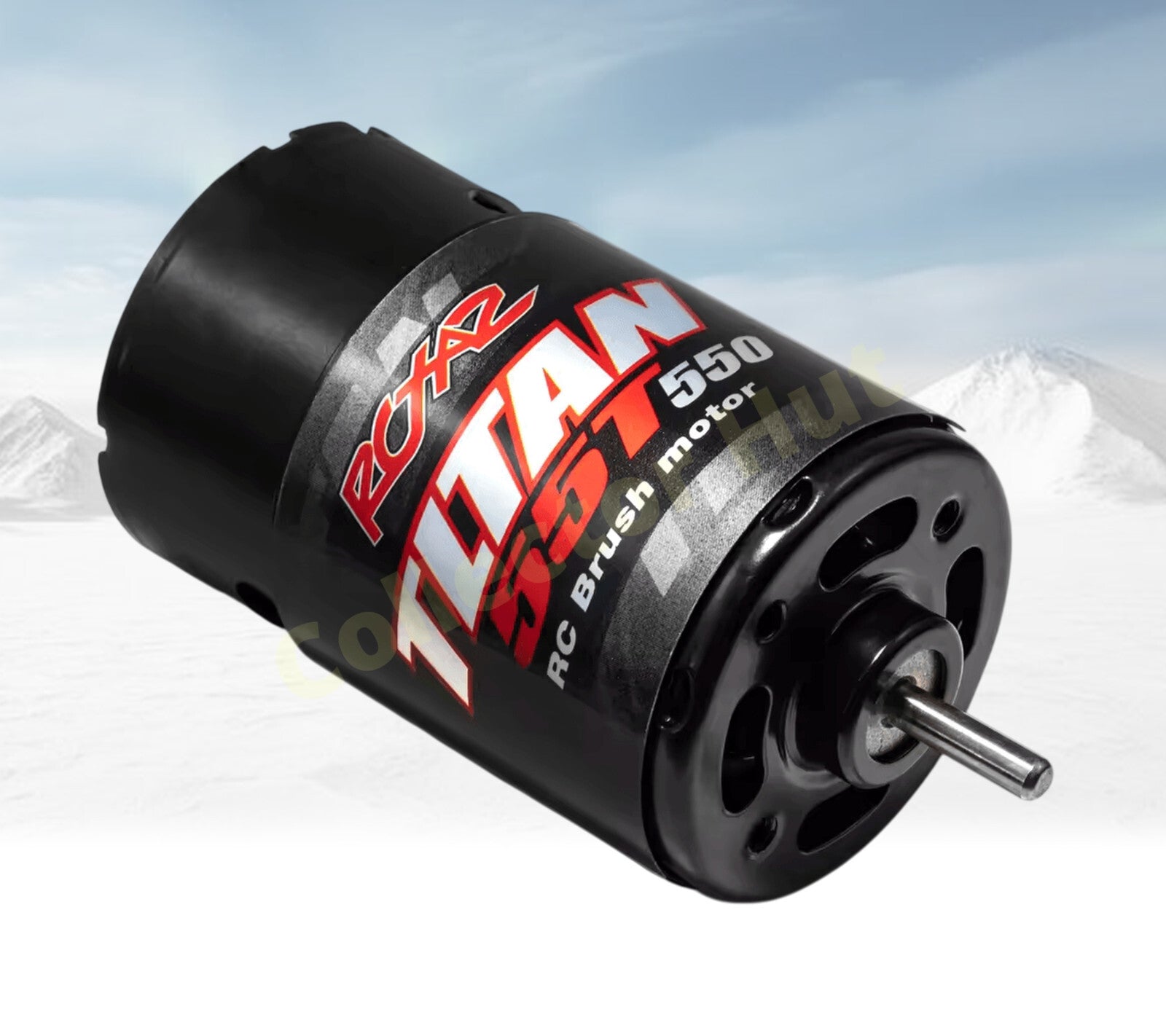

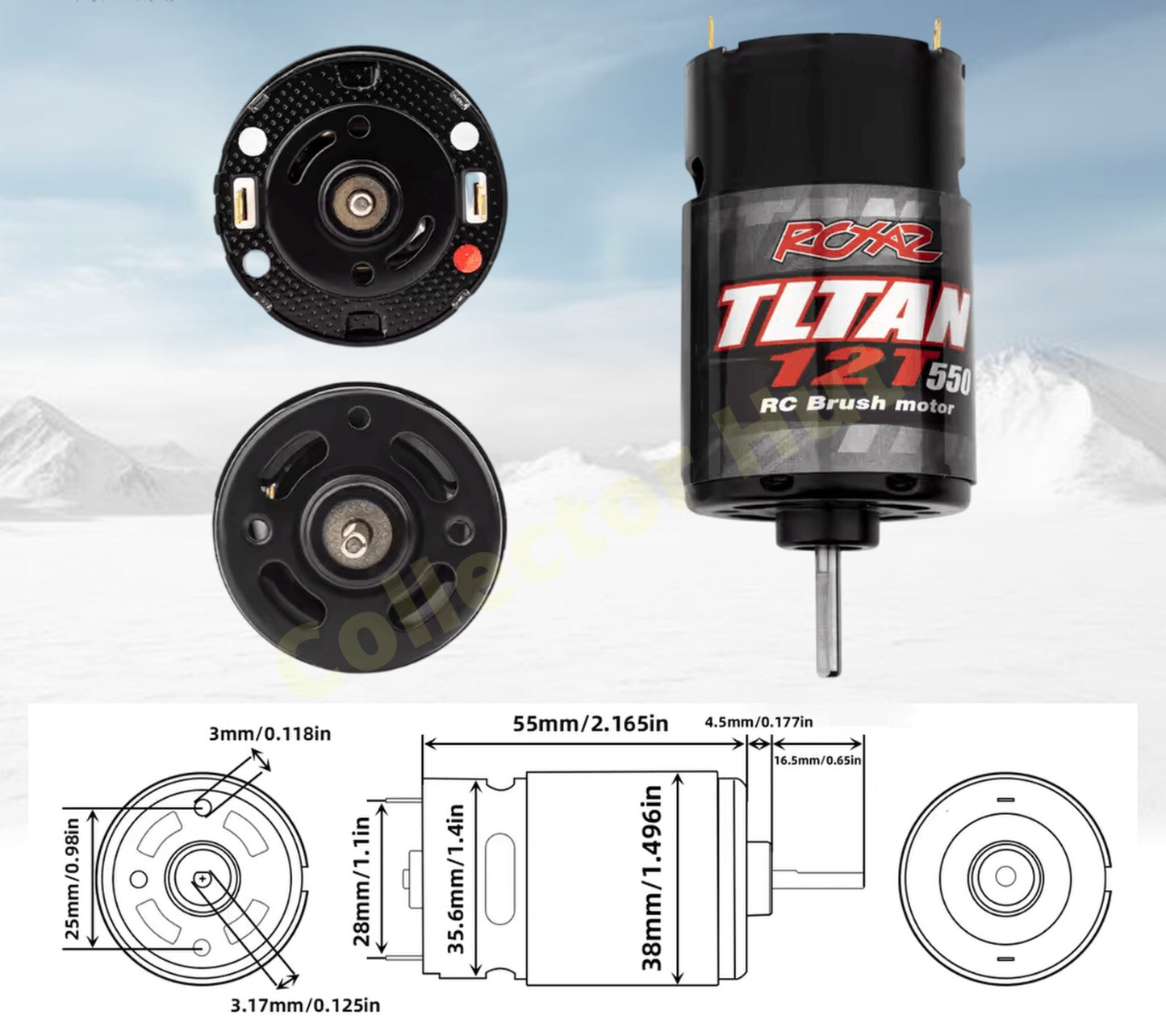

Motor Specifications:
- Diameter 38mm
- Shaft length: 16.5mm (12T), 11mm (21T, 29T, 35T, 55T)
- Shaft Diameter: 3.17mm
- Use voltage: 7.4V(12T), 7.4-11.1V (21T, 29T, 35T, 55T)
- Weight: approx 230g
- Suit For: RC Car / Boat
ESC modules are capable of supplying up to 320A (forward) or 160A (reverse) under a DC current. An integrated battery eliminator circuit (BEC) powers the battery receiver of the motor, with automatic cut-off of the motor power to conserve the power of the receiver on drained batteries.
- Built in heat sink to aid with heat dissipation
- Waterproof for extreme environments
- Automatic throttle stroke adjustment
Multiple protection functions such as lithium battery low voltage protection, cell quantity automatic detection, high temperature protection, and throttle signal loss protection.
Please note the voltage and current limits of ESC modules based on 2S/3S batteries.

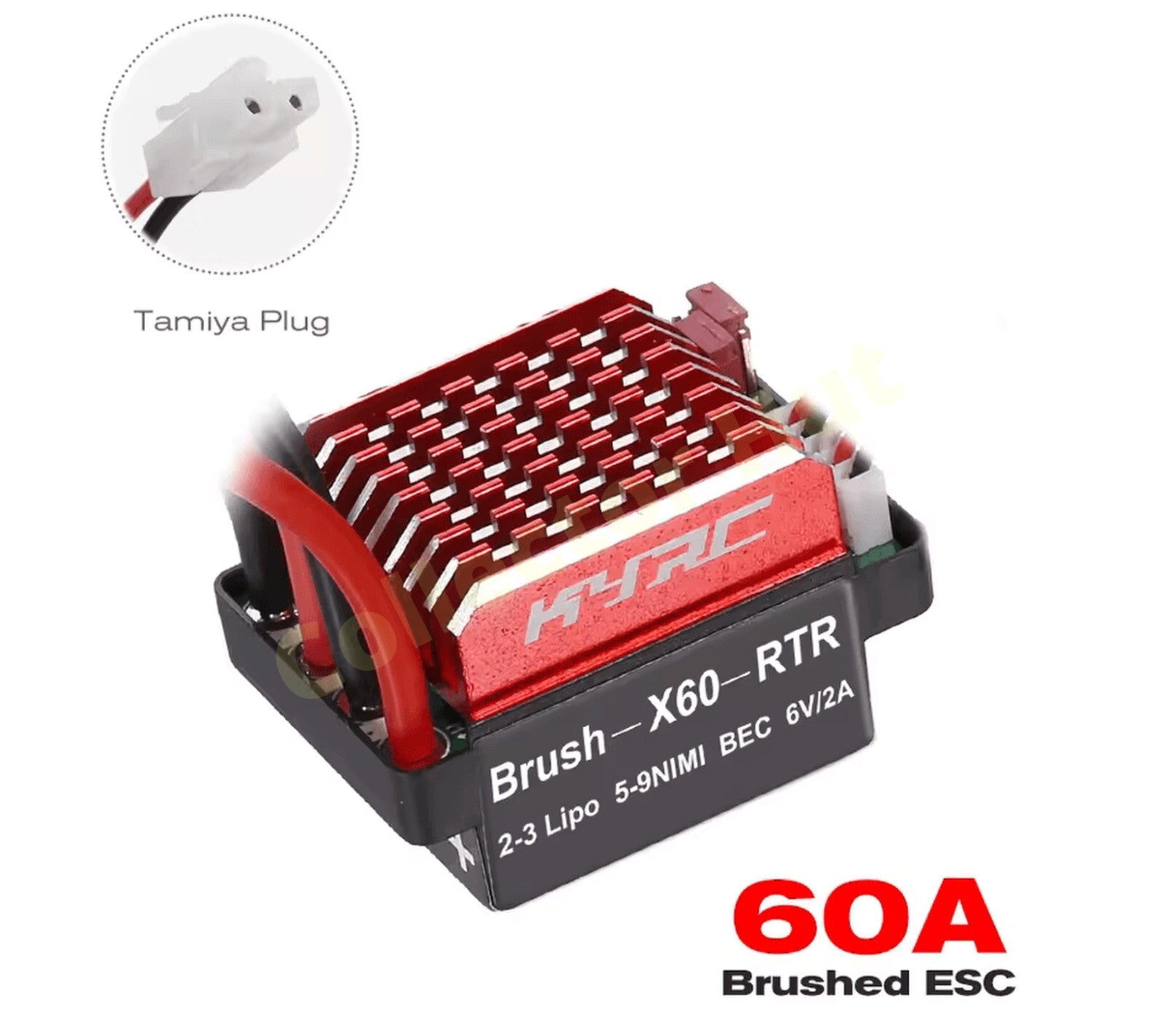

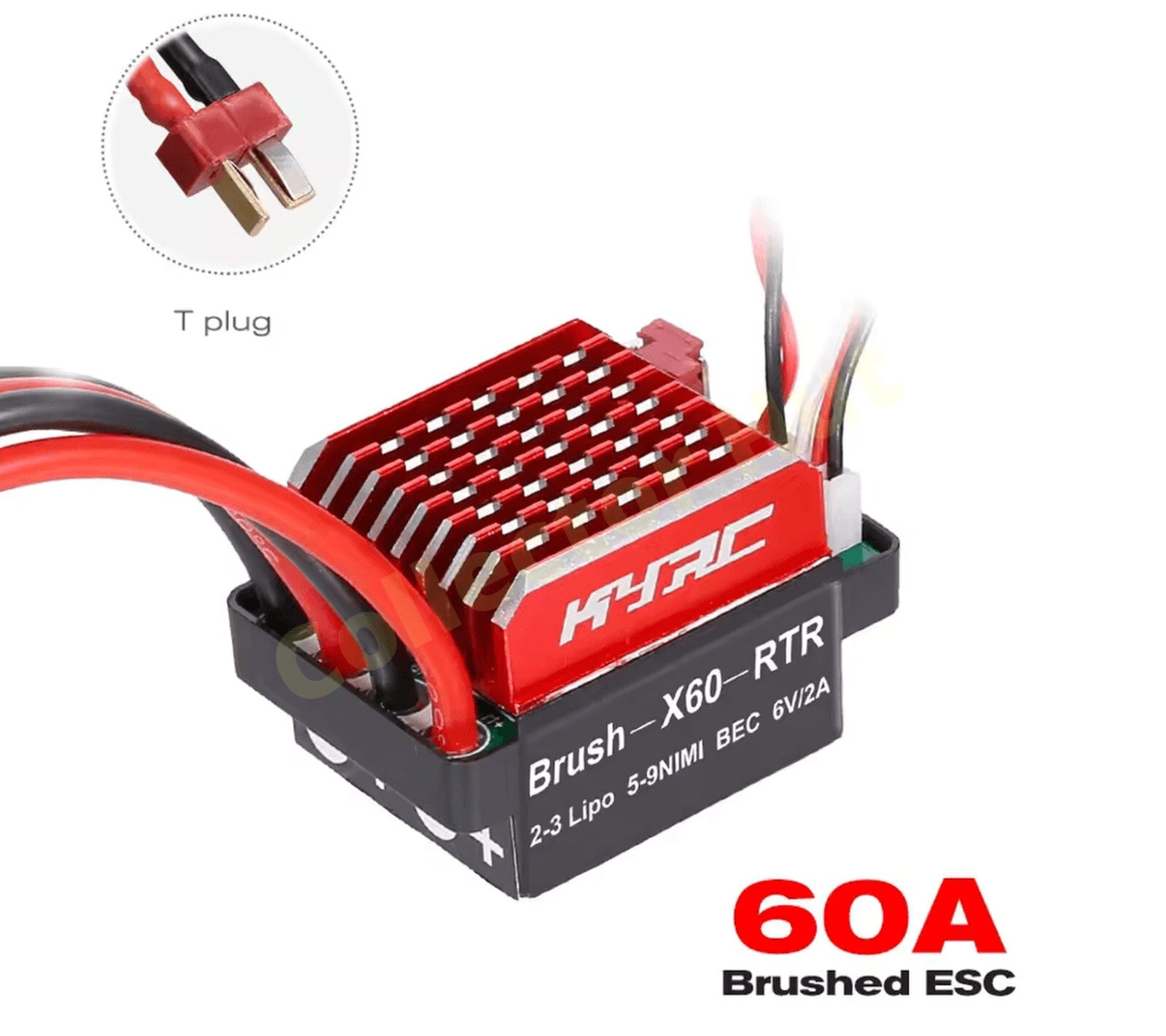

X60 (Red)
- For off-road vehicles, crawlers and tanks
- Voltage Rating: 2-3S Lipo/5-9 Cells NiMH Battery
- 2S Lipo/6 cells NiMH: 540/550 motor:> 12T or RPM less than 30000@7.2V
- 3S Lipo/9 cells NiMH: 540/550 motor: >18T or RPM less than 20000@7.2V
- 7.4-11.1V 3S Lithium Batteries
- Current ranges : 60/360A forward / 30/180A reverse, no brake
- BEC output: 2A/6V (linear regulator switch)
- Size: approx. 42x28x26mm (allow for cables)

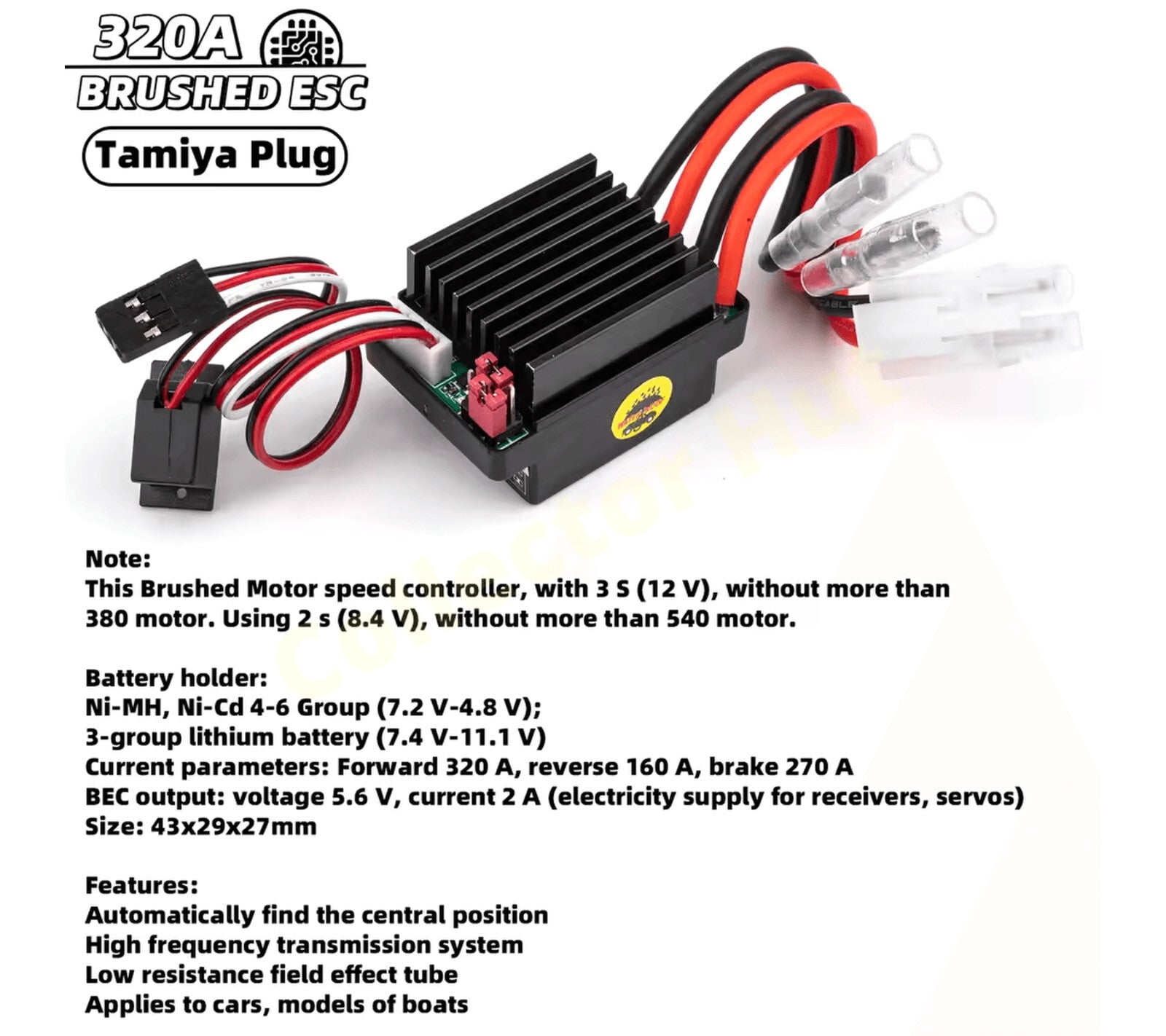

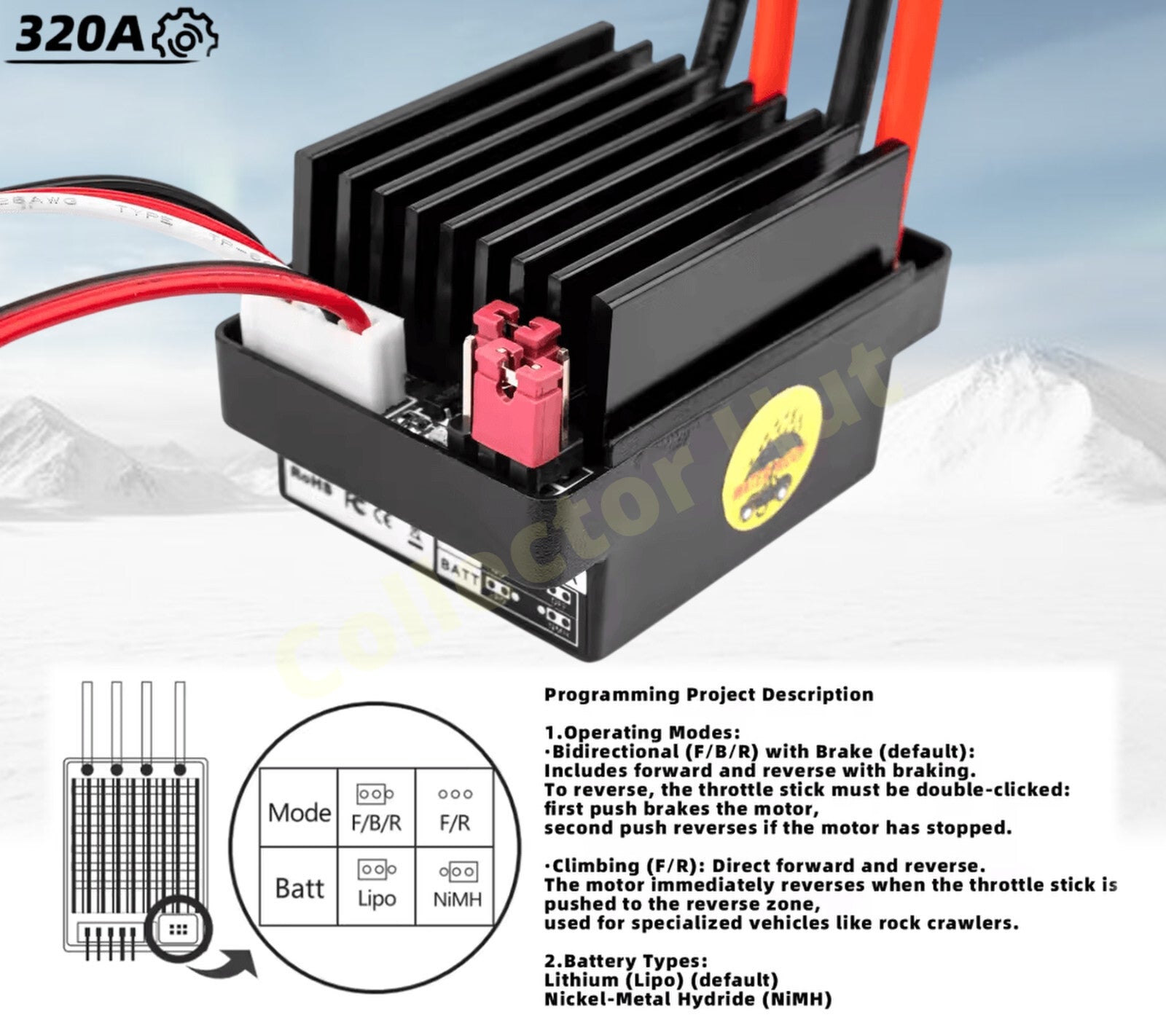

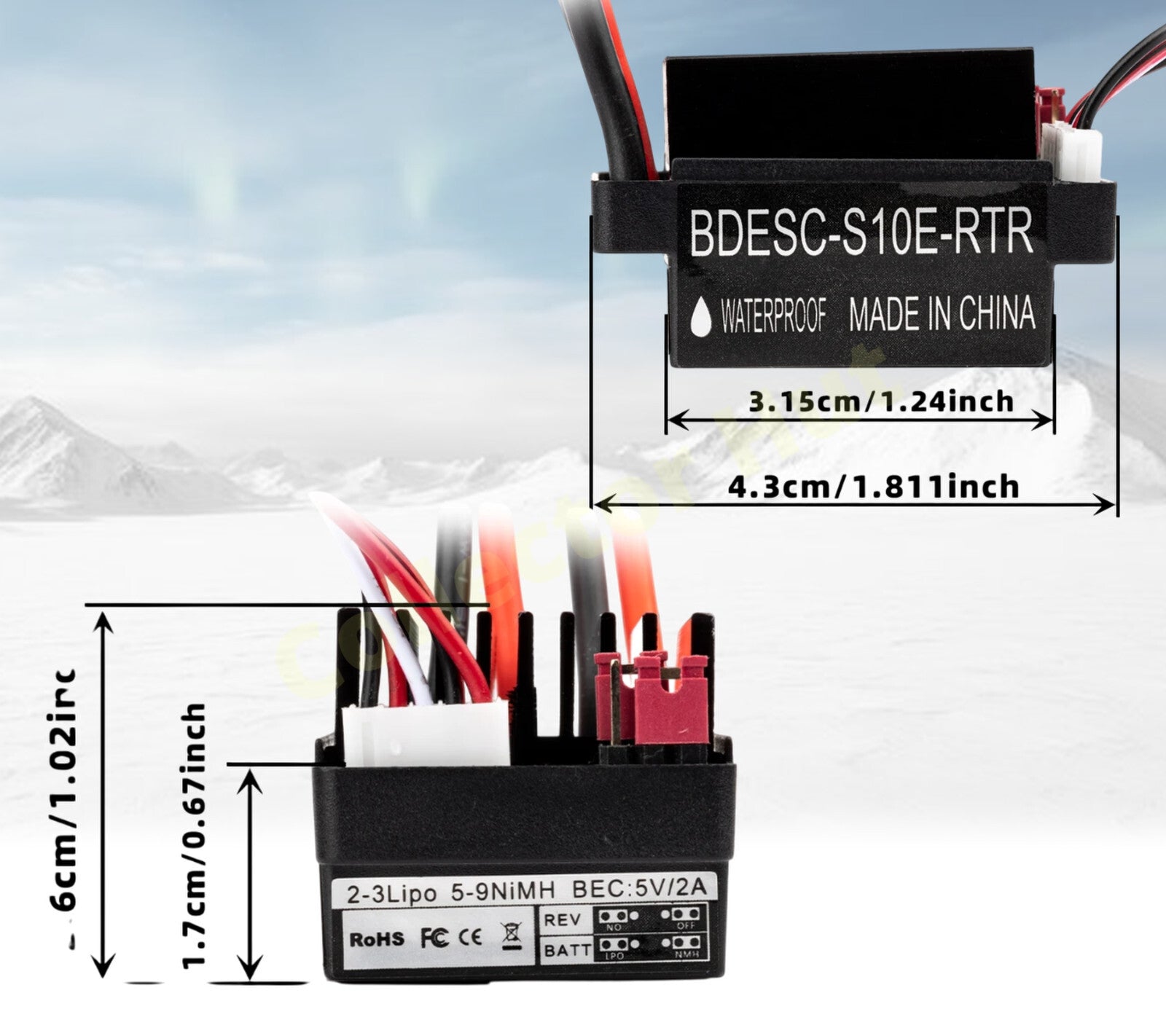

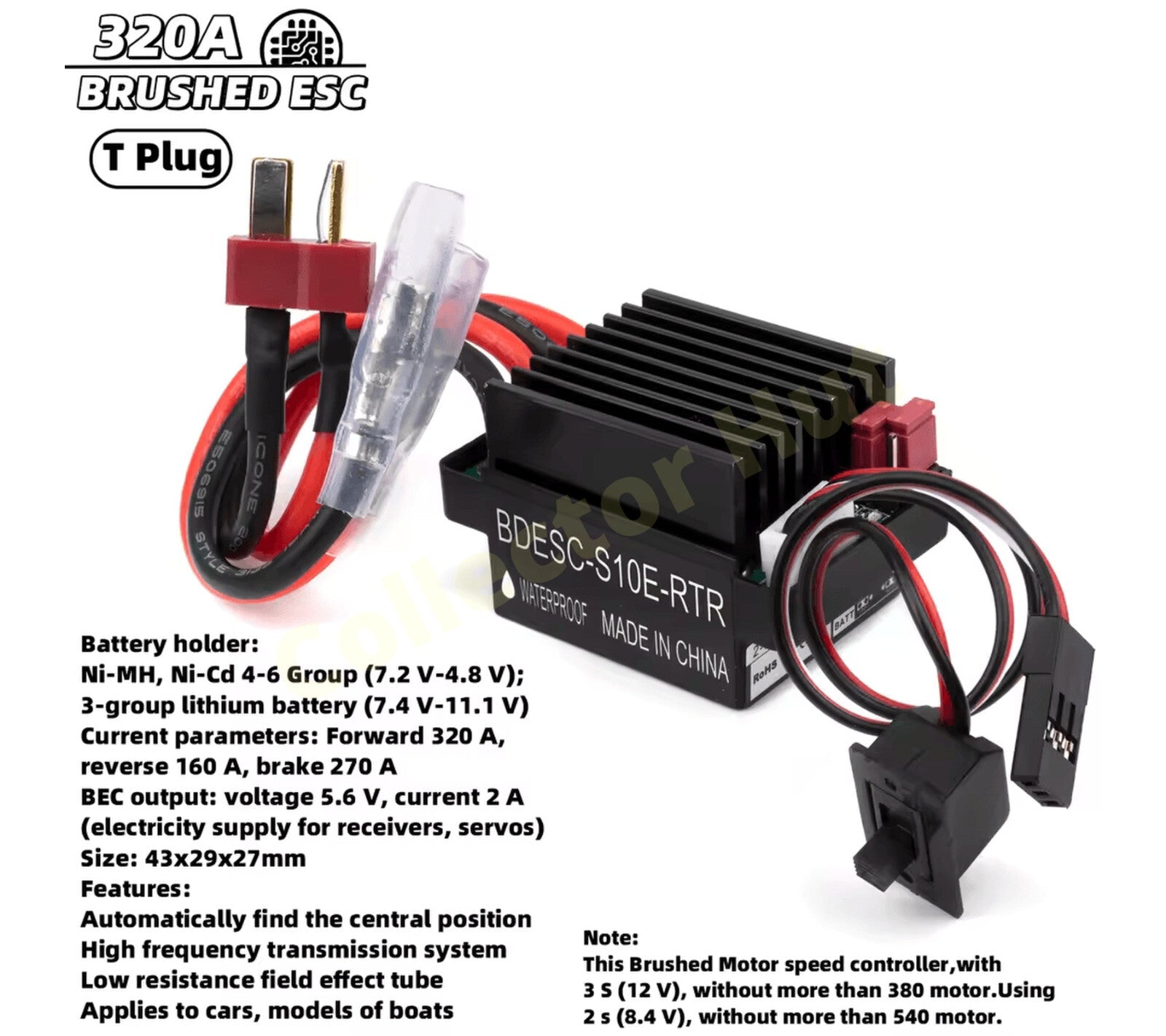

S10E (Black)
- For all RC vehicles up to heavy duty ratings
- Voltage Rating: 4.8-7.5V Standard 4-6 Group Ni-MH, Ni-Cd Batteries
- 7.4-11.1V 3S Lithium Batteries
- Current ranges : 320A forward / 160A reverse, 270A brake
- BEC Output: 5.6V, 2A
- Size: approx. 43x29x27mm (allow for cables)
When installing and powering on, the module produces a "beep" sound and then turn on the power transmitter, the motor will produce a "duo-the-mi" sound that proves that the remote-control signal and ESC have connected correctly
