MN90 MN99 Range Rover Defender Rock Crawler Conversion Upgraded Custom Build

For those who know, here is another one of our custom MN builds to illustrate the potential of these value models!

The classic MN90 model is one for Land Rover fans, but is limited by having an outdated and underpowered 130 motor, servo board and steering system (which limits turning angle). These systems were updated on the MN99/98 models, but this leaves the MN90 as the only option for the classic colours.

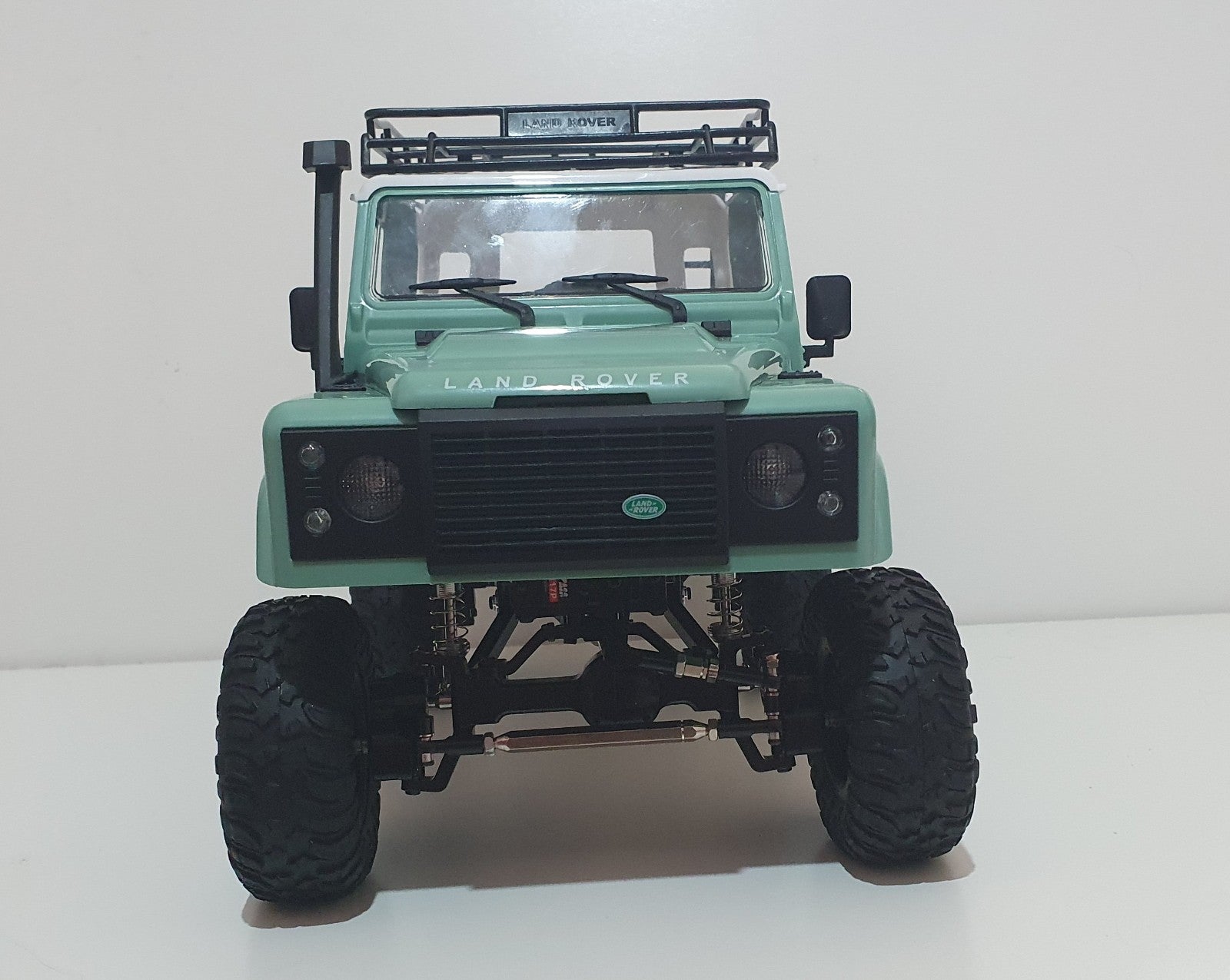

We have used this MN90 model as a conversion project, upgrading it with a 370 motor and updating the circuitry and steering system to the latest design.

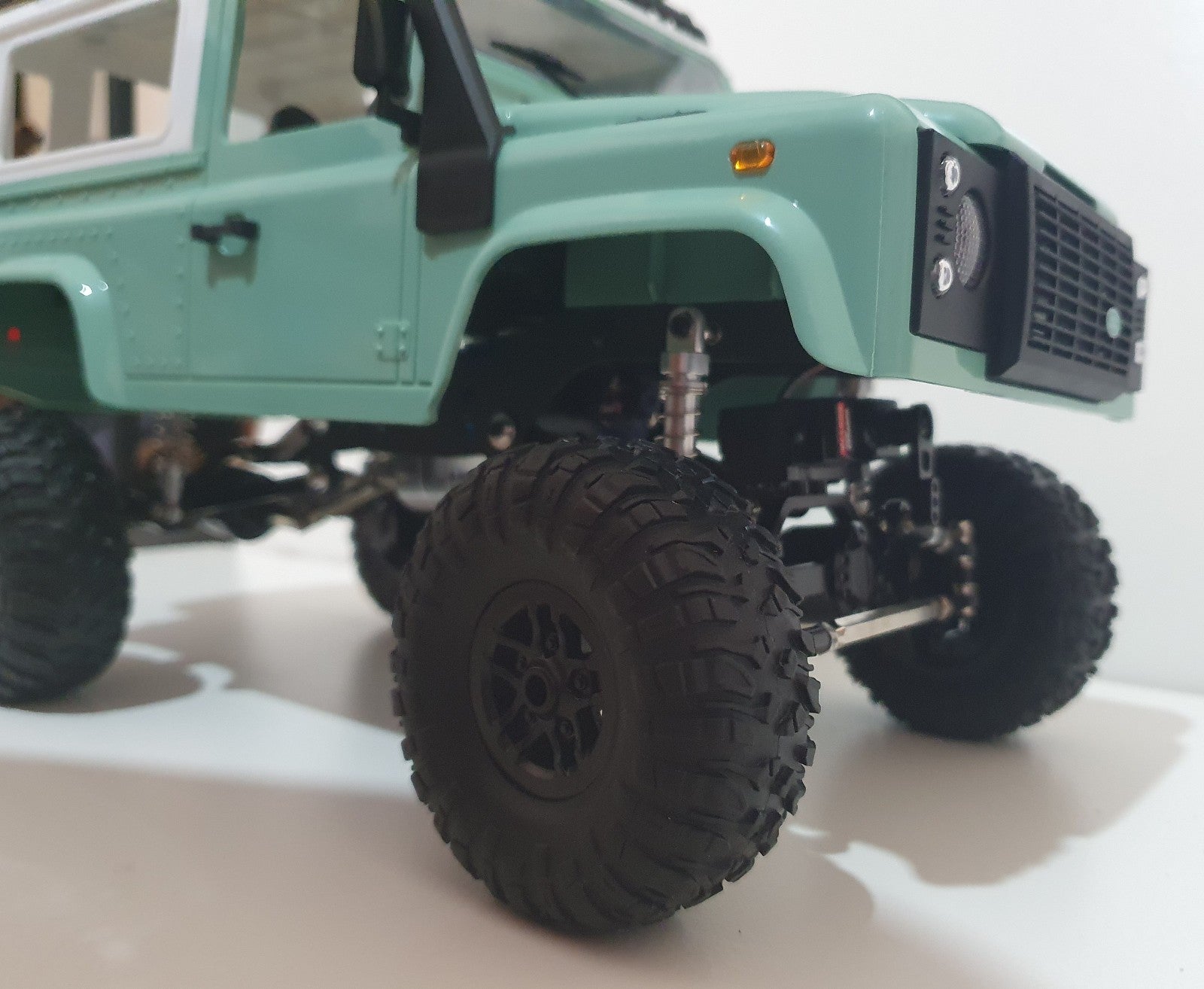

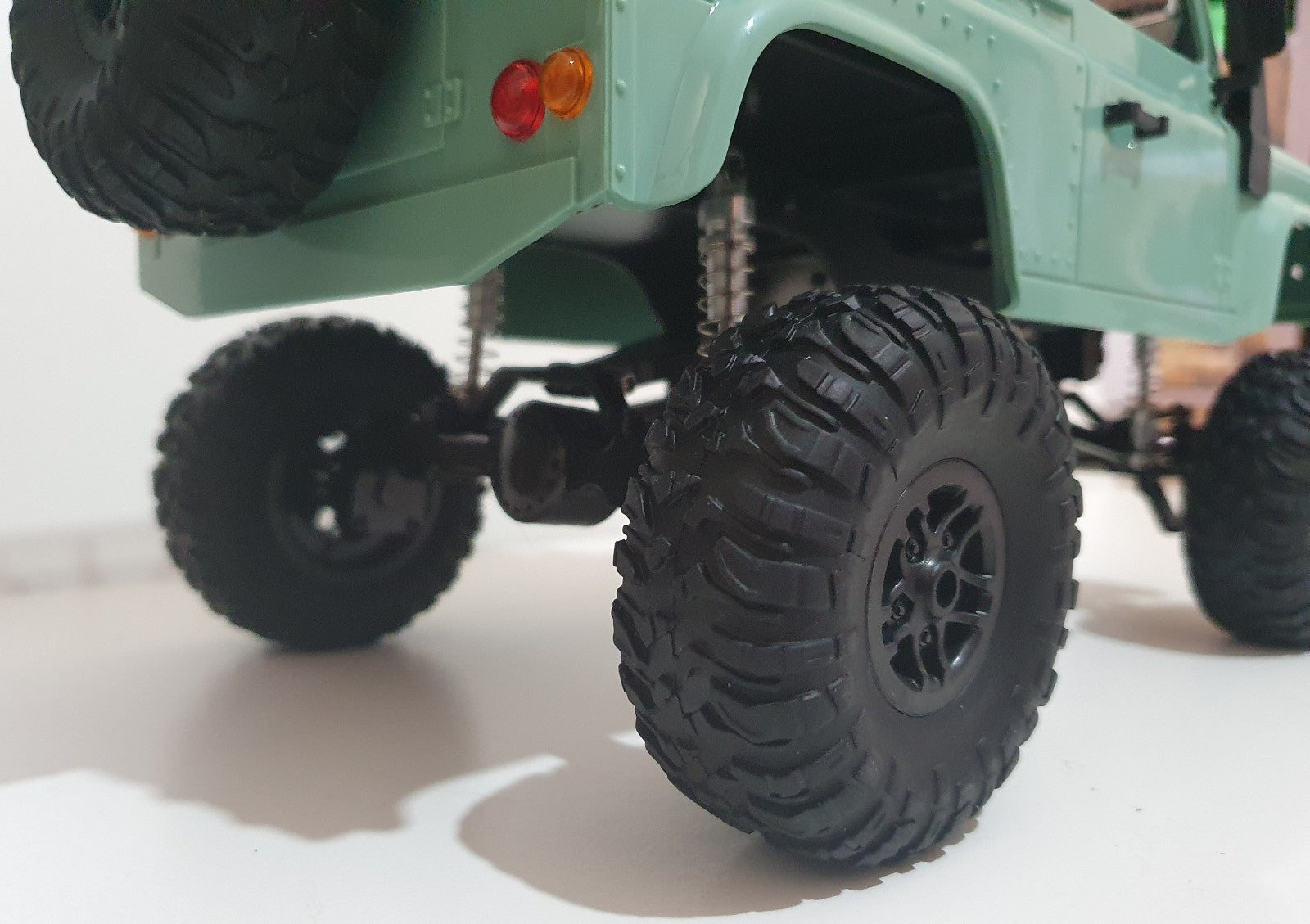

For the steering system upgraded, we converted everything over to full metal axles in black/chrome and black metal cross bar, providing a massive improvement on steering angle. The suspension is upgraded with chrome hydraulic shocks, which provide impressive responsiveness.

The outdated circuitry has been updated with the latest XL1986RT board which incorporates an updated 17g servo and supports proportional steering. The new components are seated on an updated metal front base seat, that features a hole for accommodating the servo, which is connected with a black metal horn.

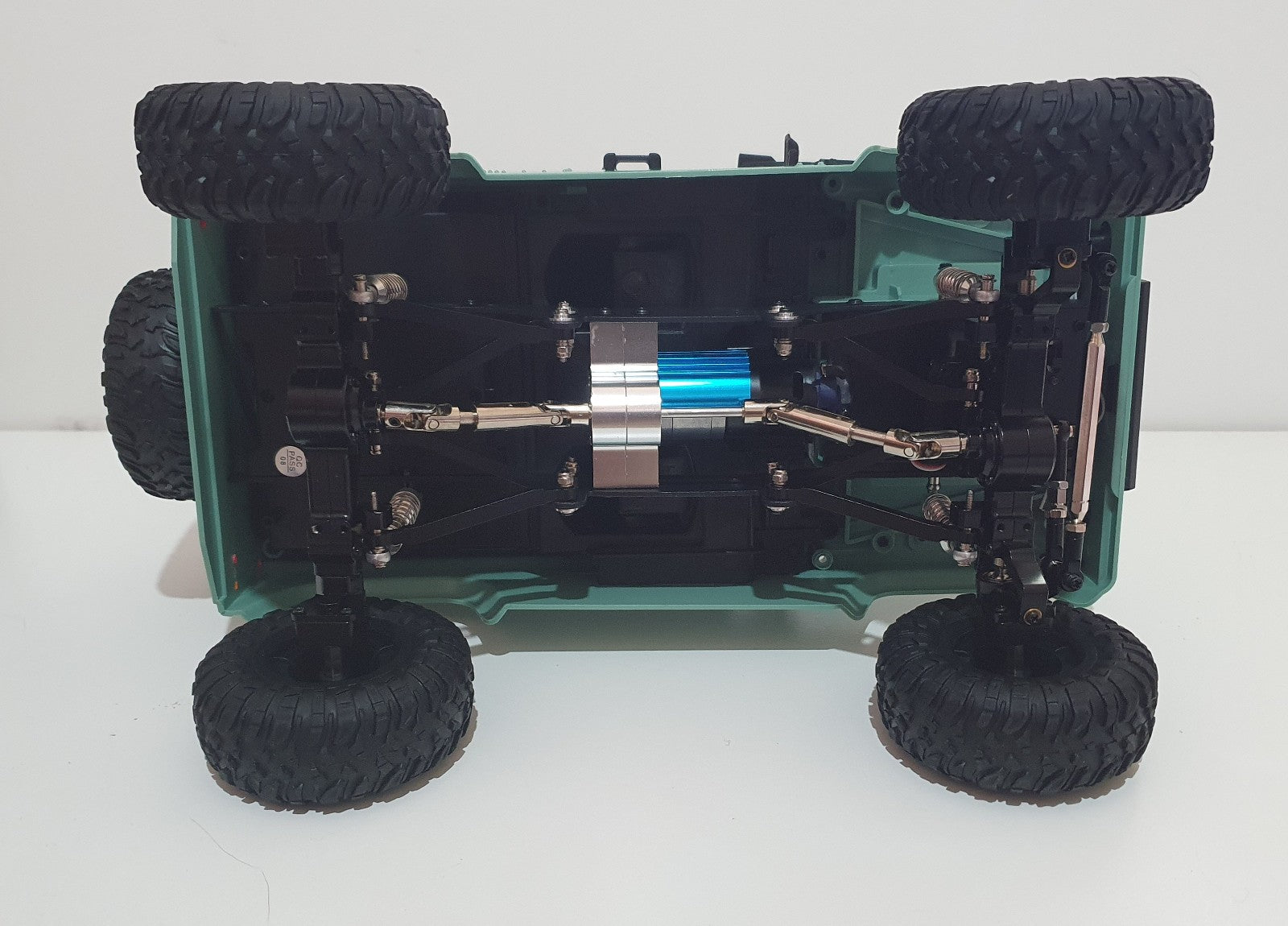

The motor has been updated with a 370 model, making this MN90 more powerful than the stock MN98/99s (260 motors). Metal prop-shafts have been fitted to handle the power and to help stability at speed, we added 5mm wheel hub extensions. These can be lubricated with different hydraulic fluid for different performance.

Cosmetic components have been applied and we have a range of upgrade options in our store for anyone wanting to take this model a step further.

Make no mistake, this MN90 model is a beast and will put the stock MN98/99S models to shame. This is a rare opportunity to own a classic model with the latest technical features.

FEATURES

• Metal front and rear PORTAL axle shafts (black and chrome)
• Metal tie-rod linkages
• Metal front and rear prop-shafts
• Upgraded hydraulic suspension
• Uprated 17g servo
• 5mm wheel hub extensions
• 370 motor upgrade
• Upgraded XL1986RT circuit board

When it comes to our custom builds, we don't create these with profit in mind and parts alone cost more than the listed price. We build these to test the limits of these models and the parts we offer, so we can help customers their projects, mechanical, electrical, we know our products!

We will continue to list new, interesting models under this listing and will consider requests from customers who would like a model built for them. Let us know what models and upgrades you are interested in and this might just be our next custom build!

All other elements of this model and listing are as with our standard listing.

Physical Dimensions

• Car Dimensions: 1:12 Scale 350x205x165mm
• Material Composition: Crafted from PA, Alloy frame, and Electronic parts.
• Wheelbase: 21.5 cm
• Ground Clearance: 5.5 cm

Performance

• Climbing Ability: Maximum climbing angle of 46°.
• Approach and Departure Angles: 70° and 40° respectively.

Technical Specifications

• Speed: ≥8.72km/h
• Transmitter: 2.4G with a 2CH system, capable of reaching up to 100m. Requires 2 x 1.5V AA batteries (not included).
• Power System:10A ESC, 17g servo, brushed motor

• Charge time: about 180min
• Battery: 7.4V 1200mAh Li-ion battery included, offering around 25 minutes of endurance use.

In the Box

• 1x RC Car
• 1x 1200mAH Li-ion Battery
• 1x Remote Controller
• 1x USB Charging Cable
• 1x Sticker Sheet
• Accessory/Component Set (some assembly required)


We inspect and test each model we receive from factory, ensuring the models are undamaged, the batteries, motors and control systems function as intended.

The original box for these units is very soft and fails to properly shield the truck during shipping (too much movement). For this reason, we repackage our trucks into new boxes, repacking all accessories and build components for greater protection. If you still want a gift box, please ask with your order (subject to availability) and we will do our best with packing, but this could leave the item susceptible to damage in transit.

Upgrade

The MN90-99 series offers a huge range of functional upgrades and you can find these in our upgrade listing.

We recommend you start from the basic model and upgrade components gradually to suit your style, so you build a completely unique truck. Simple upgrades to the battery and suspension can make a significant difference during use, as can frame components that increase the bottom weight of the vehicle.

With so many upgrades, with a range of colours, we operate on a dynamic stock basis. We urge customers to reach out to us if they need a component we do not currently have in stock.
