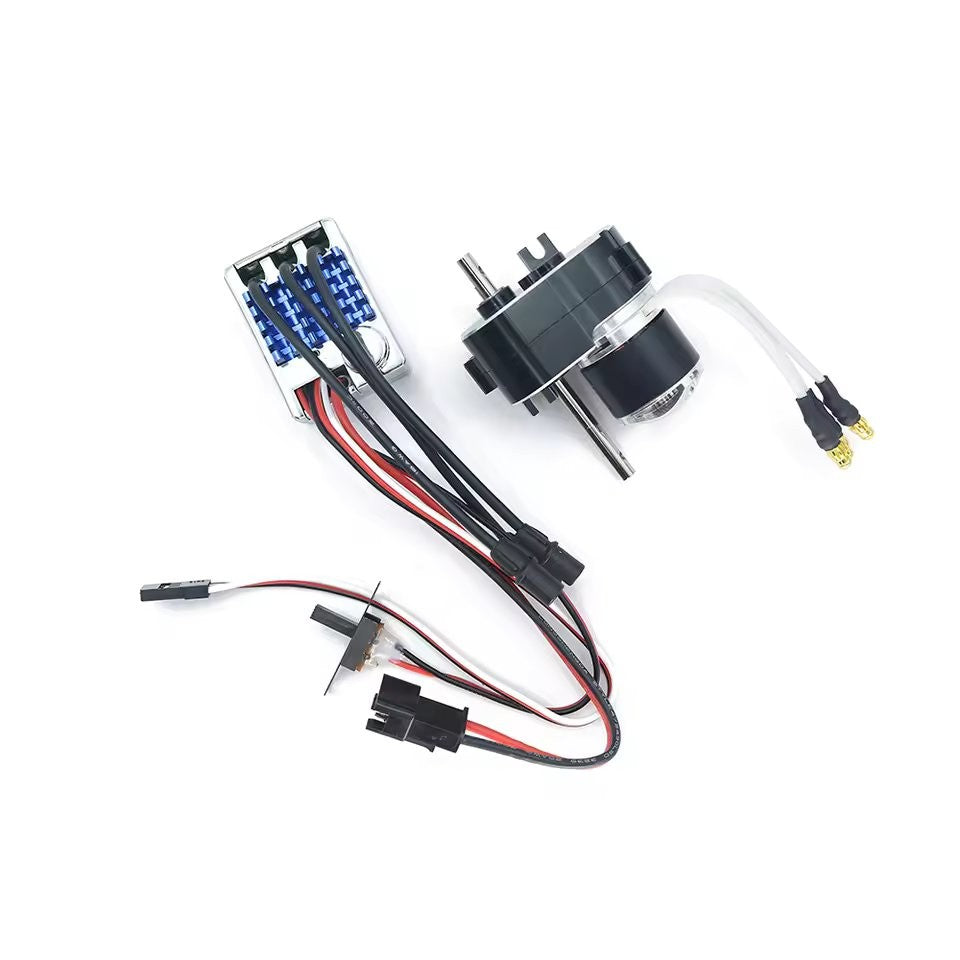

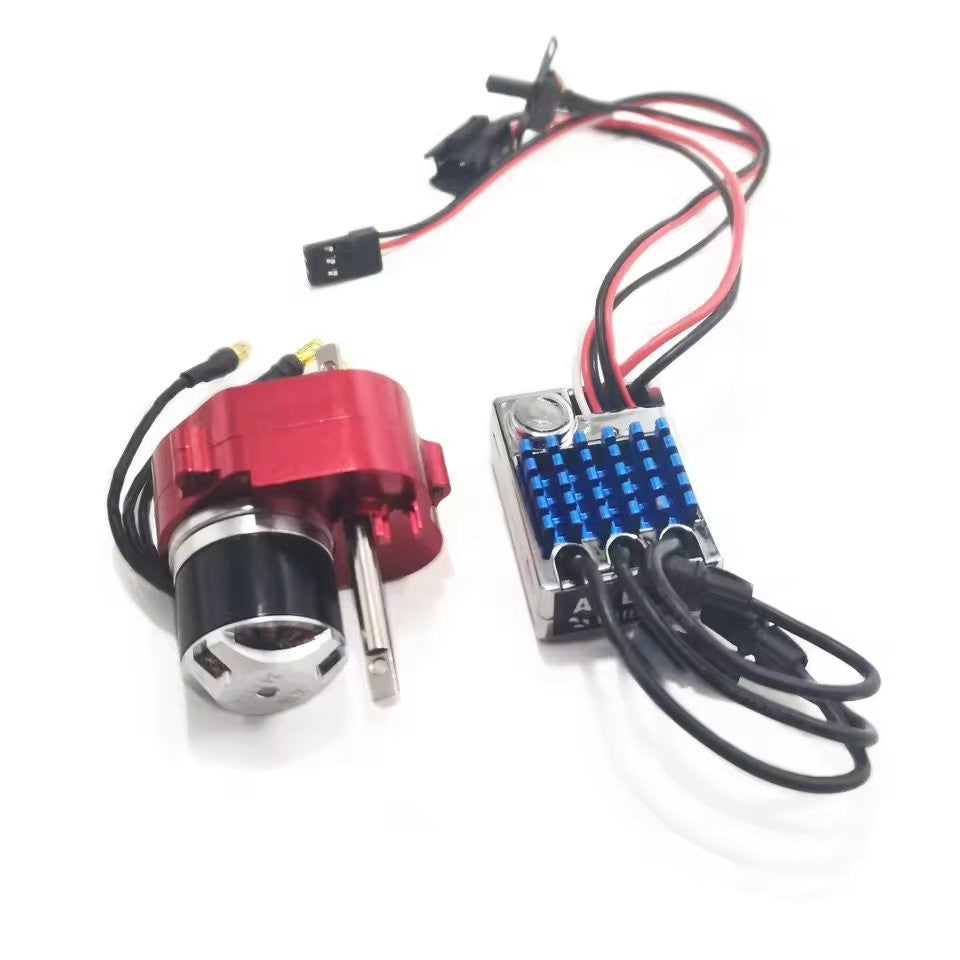

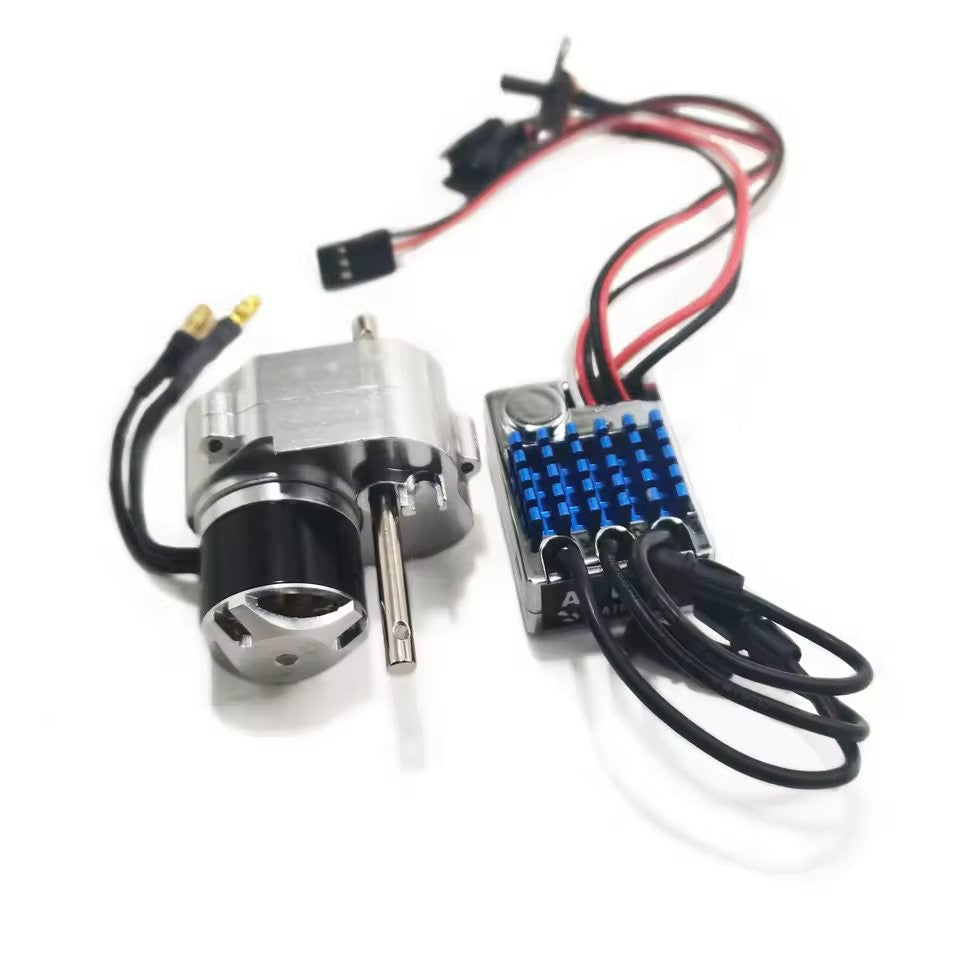

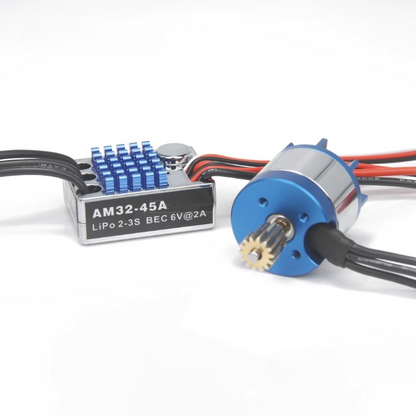

MN82 MN98 MN99 MN168 Brushless Motor Upgrade Kit AM32 2322

Low stock! Only 2 left

Upgrade your MN Model with a brushless RC motor for maximum performance!

These brushless motors are the ultimate motor upgrade for you MN Model.

Designed specifically for MN models, compatible with their range of 1/10 - 1/12 scale models.

These models provide greater torque and a more refined lower speed power distribution, for am improved and more controlled crawler experience.

The core motors are designed to fit the factory gearboxes, but due to the increased power, are ideally suited to the upgraded metal gearboxes. We offered comprehensive kits for this, along with other upgrade components in our store.

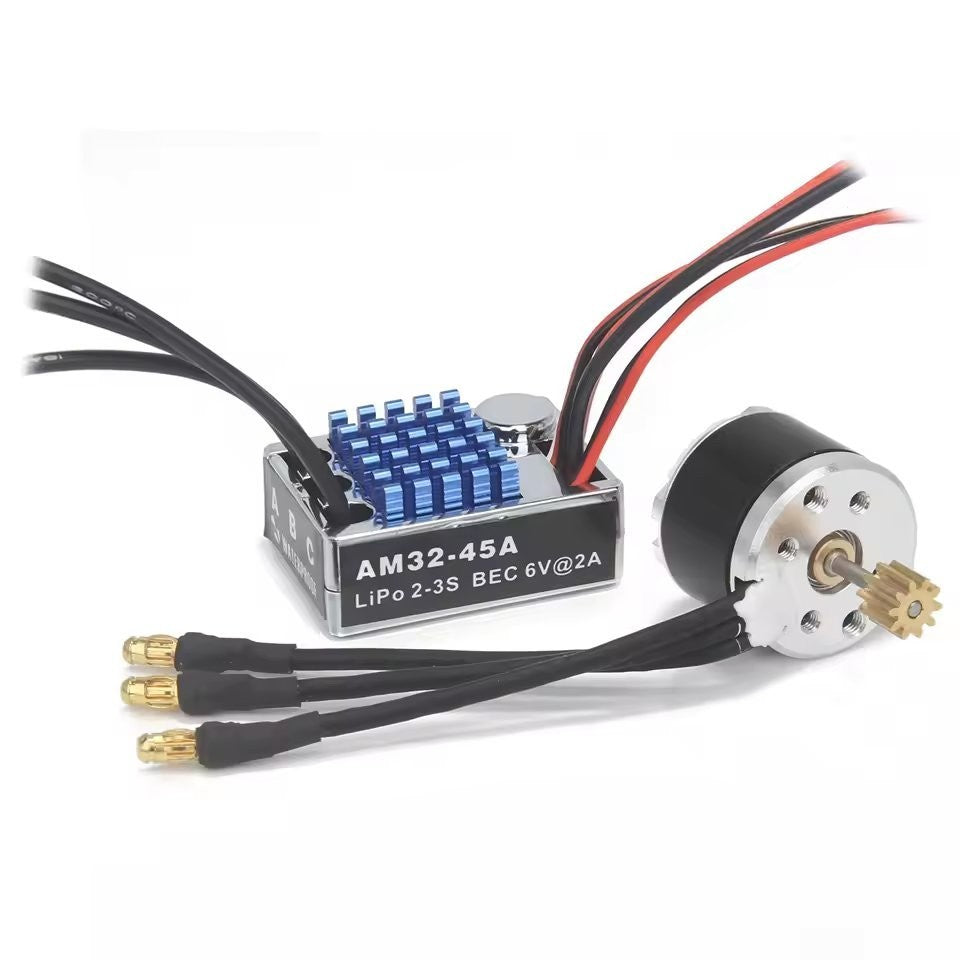

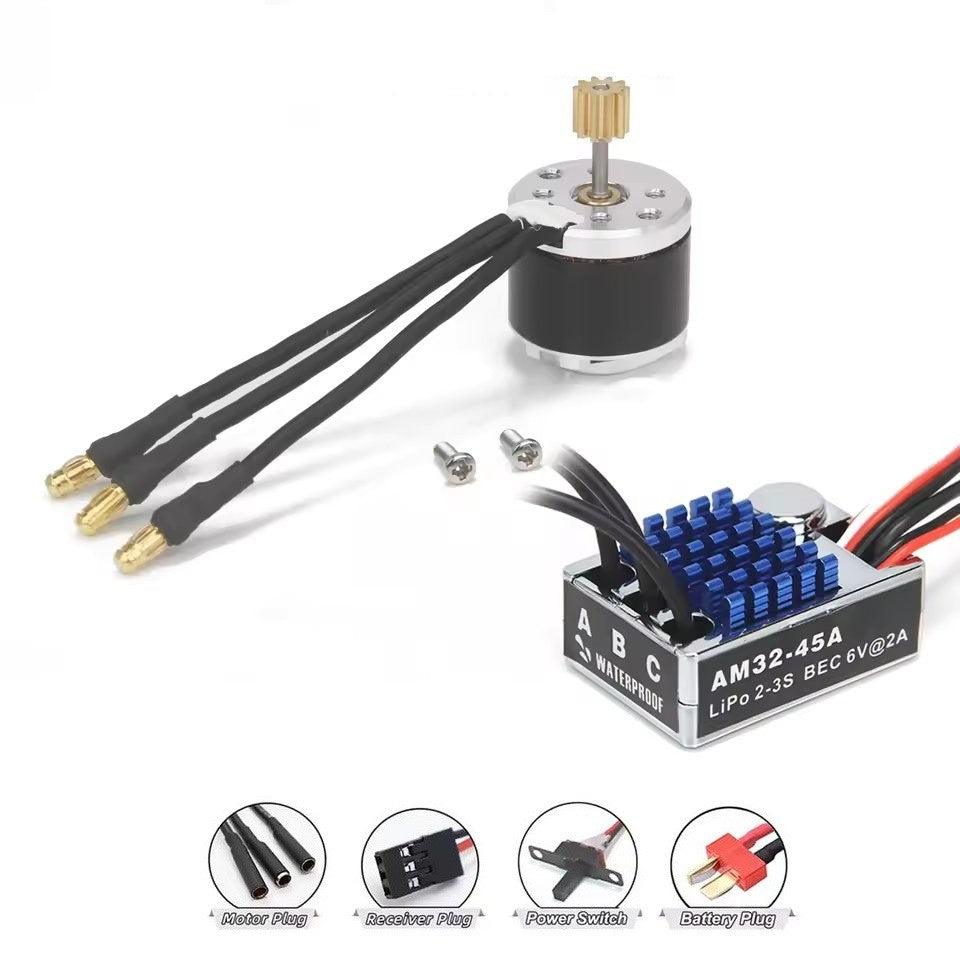

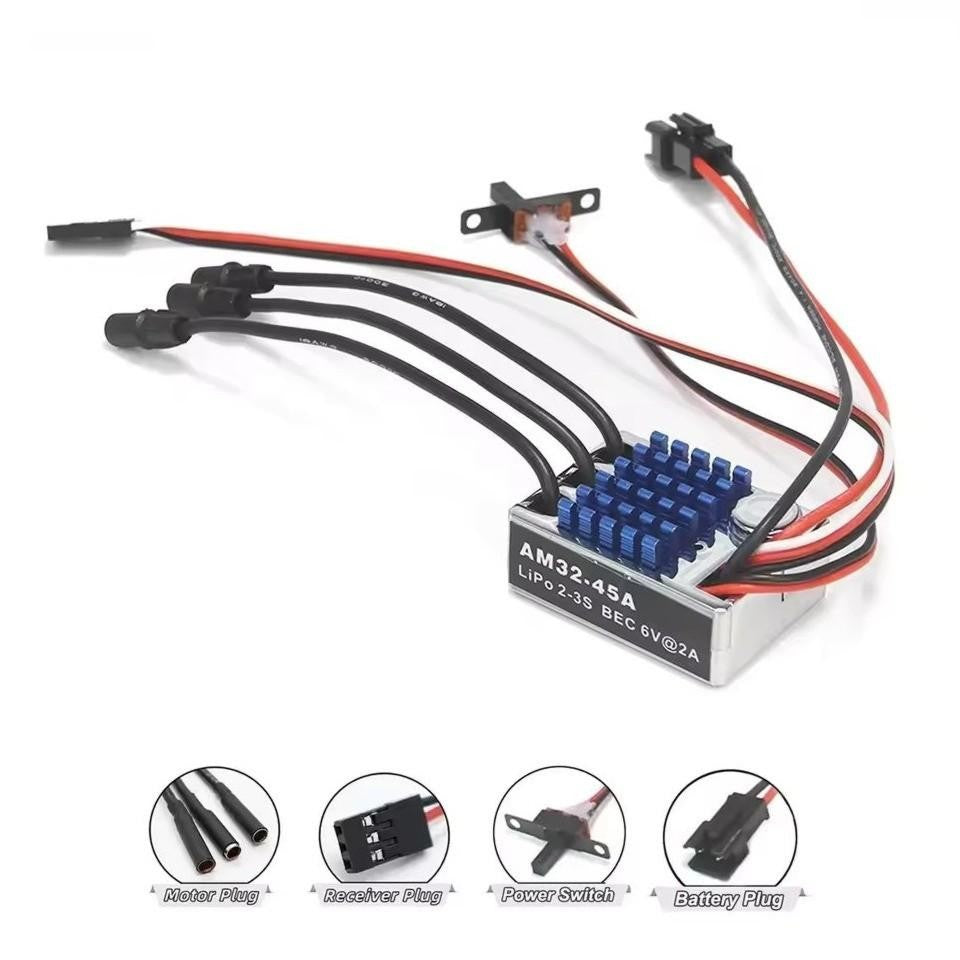

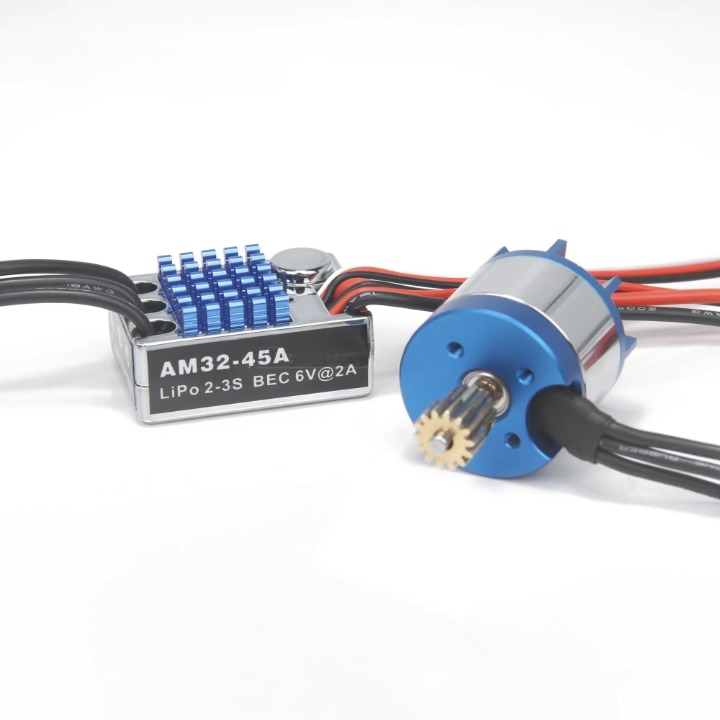

AM32-45A ESC

  • Voltage:7.4-11.1V
  • Lipo:2-3S
  • Battery Connector:SM3.0/T Plug
  • Cont.Current:45A
  • Sine start-up
  • Low speed torque compensation
  • Size:38.5*28*18.5mm
  • Plastic casing
  • SM 3.0 Connection
  • Pre-wired power switch
  • SM-3P Power plug

The 2322 motor kit is for V2 generation models, MN82, MN90 (use core kit with upgraded chassis gearbox), MN98/99s and MN168

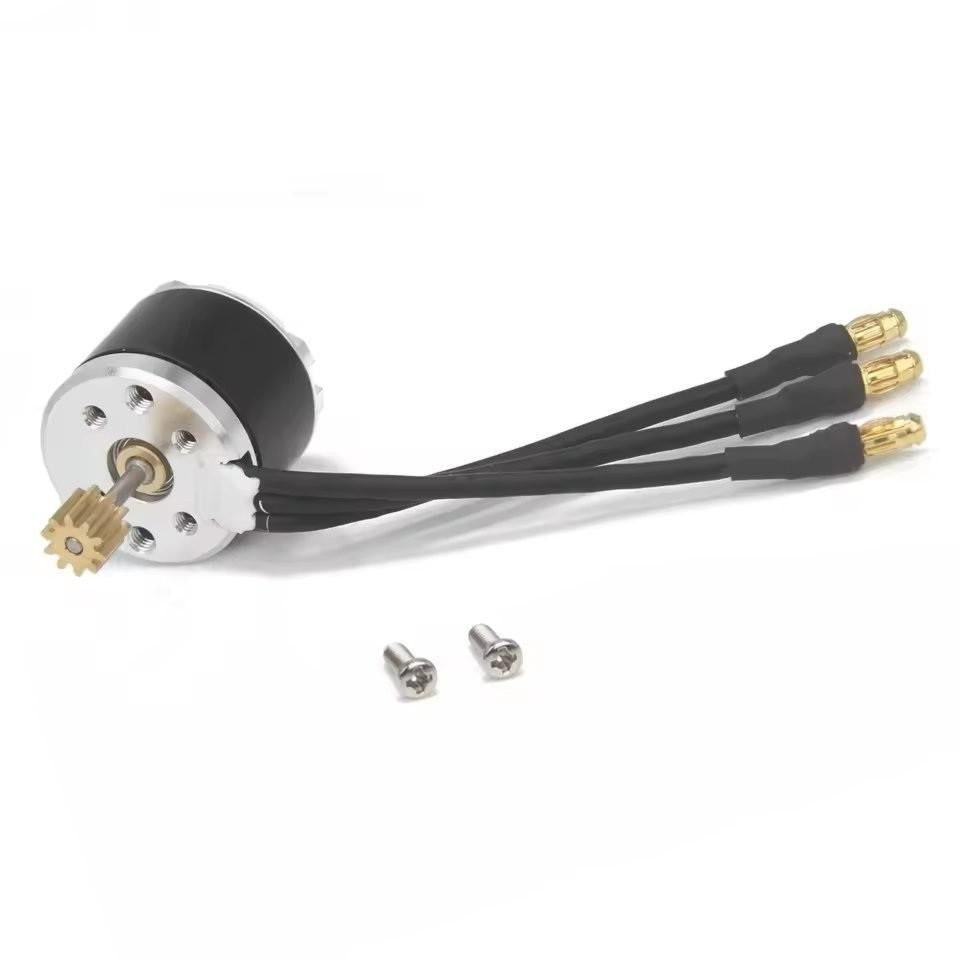

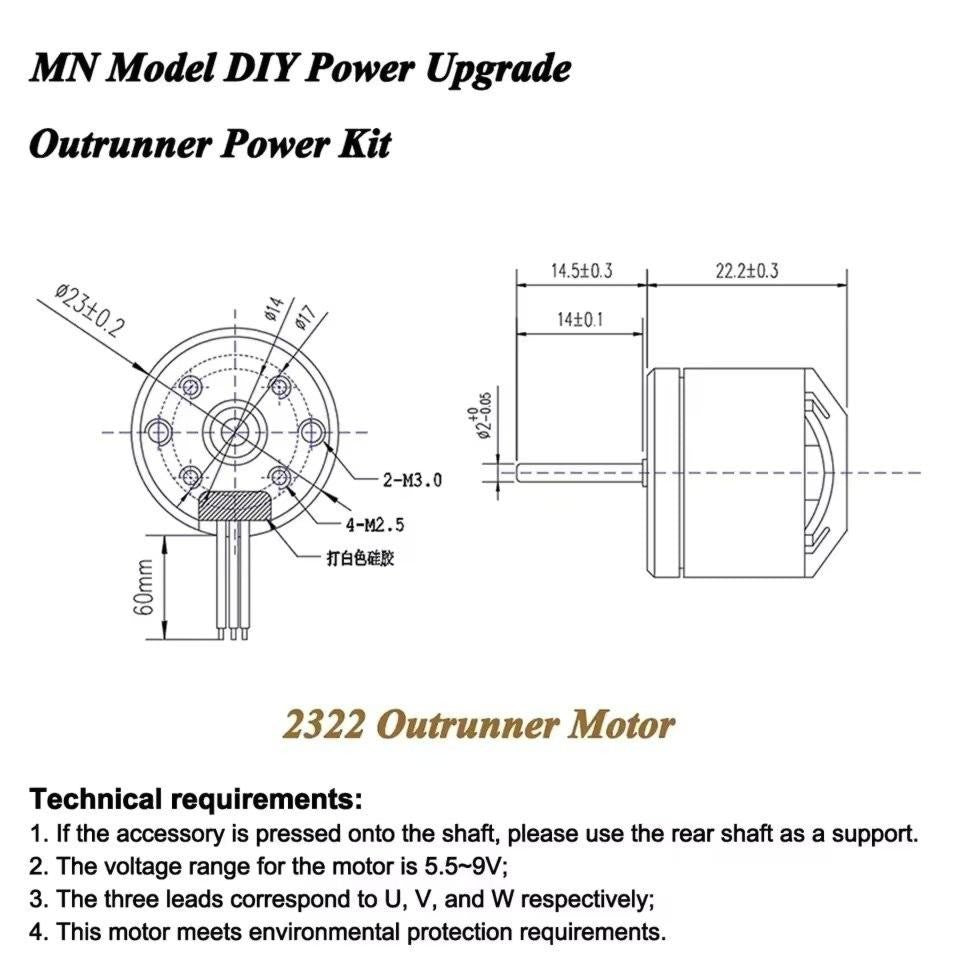

2322 2600KV Motor

  • Voltage range: 5.5-9V
  • Rated voltage: 7.2[VDC]
  • No-load current: 1200 [mA] max
  • No-load speed: 19000±10%[rpm]
  • Load torque: 100 [gf.cm]
  • Load speed: 17000+10% [rpm]
  • Direction: CCW/CW (viewed from the output shaft end)
  • Insulation grade: Class B
  • Axial play: 0.3 [mm] max
  • Number of gear teeth: 10T
  • Size: 23mm diameter x 22mm length + 14.5mm shaft

Version 3 models, such as the MN86 and MN128, use a 380/390 motor and require the slightly larger 2830 upgrade kit

2830 2400KV Motor

  • Power supply : 2-3S
  • No-load current :0.5A
  • Magnetic poles : 14 poles
  • Motor connector type: 3.5mm banana plug
  • Number of teeth: 14T
  • Gear module: 0.6 module
  • Gear aperture: 3.17mm
  • Size: 28mm diameter x 28mm length  + 17mm shaft


Motor Kit

Regular price £26.99
Sale price £26.99 Regular price
